Drilling Machine

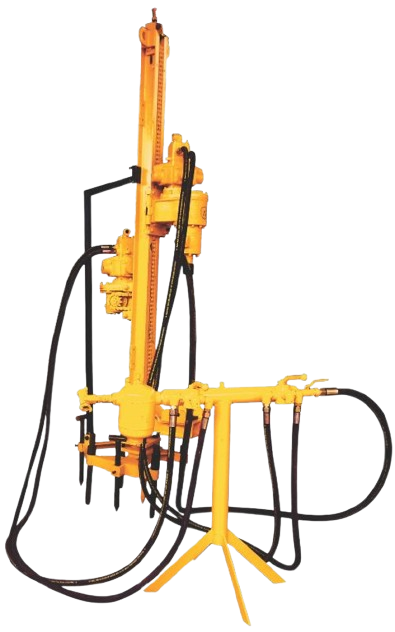

Slim Drill LD-4 Machine

Grease-Based Quarry Drilling Machine

A compact and versatile quarry drilling machine designed for vertical and horizontal drilling, line drilling and blast-hole drilling applications.

Leelanjali Rock Drill

LD-4 Slim Drill

Compact machine Serious drilling capability

The LD-4 Slim Drill Machine is specially designed for drilling applications in quarries. Its compact and versatile construction allows it to perform both vertical and horizontal drilling operations.

The machine is suitable for line drilling and blast-hole drilling applications and is particularly useful for splitting large stones and blocks. Its user-friendly arrangement allows operators to handle drilling operations efficiently while maintaining practical control at the work site.

Quarry Ready

Designed specifically for demanding quarry applications.

Dual Drilling

Supports both vertical and horizontal drilling.

Easy Operation

Practical controls for efficient site operation.

Technical Details

Built around practical performance.

Key specifications of the LD-4 Slim Drill Machine for quarry drilling and stone-splitting applications.

LD-4

Specification

Details

Hole Diameter

3 inch – 7 inch

Vertical Drilling Depth

Up to 30 meters

Horizontal Drilling Depth

Up to 20 meters

Drill Rod Length

1.5 meters (4 feet)

Approx. Weight

700 kg

Chassis

5 inch

Applications

Where the LD-4 fits.

A versatile drilling solution for quarrying, natural stone extraction and block-splitting requirements.

Line Drilling

Suitable for controlled drilling patterns used during quarry stone extraction and splitting.

Blast-Hole Drilling

Designed to support drilling requirements in quarry blasting operations.

Stone Splitting

Particularly useful for splitting large stones and natural stone blocks.

Quarry Drilling

Compact drilling equipment for practical quarry-site operations.

LD-4 Support

LD-4 Machine Spare Parts

Maintain your LD-4 machine with dedicated components and spare parts designed around its operating requirements.

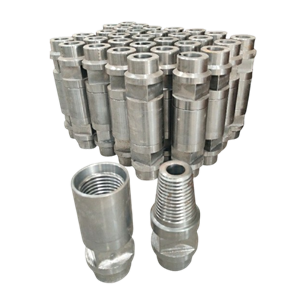

01 Adaptor

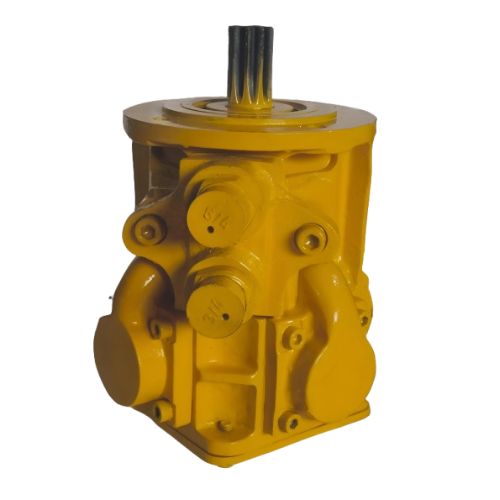

02 Air Motor

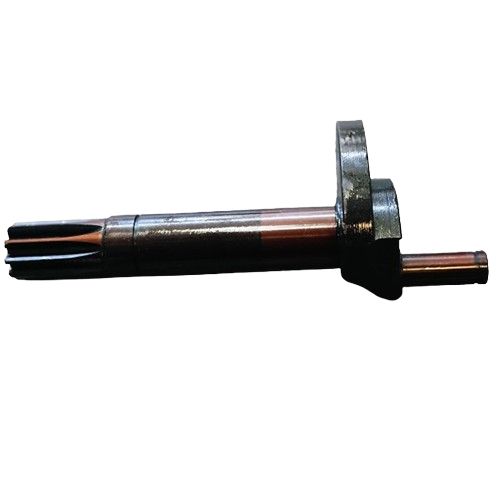

03 Crank Shaft

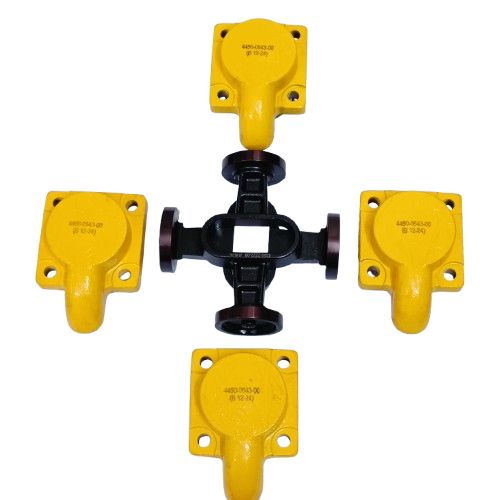

04 Cylinder & Double Piston

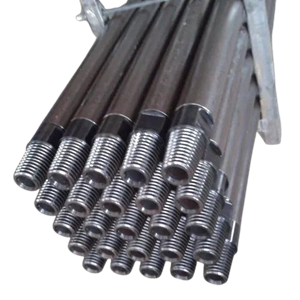

05 Drill Pipe (Rod)

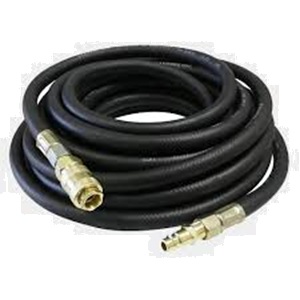

06 Hose Pipe

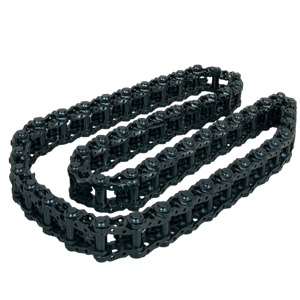

07 LD-4 Chain

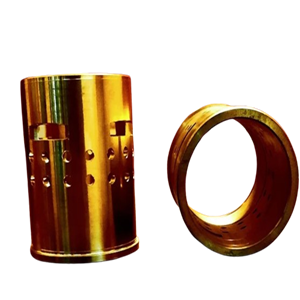

08 Liner Bush

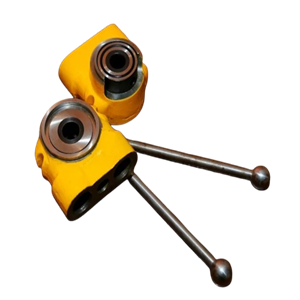

09 Lubary Control Valve

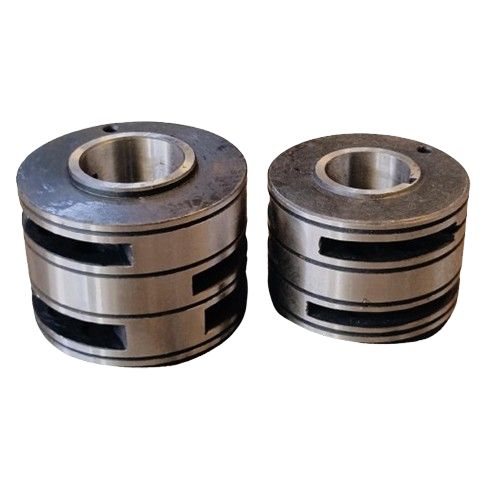

10 Main Valve

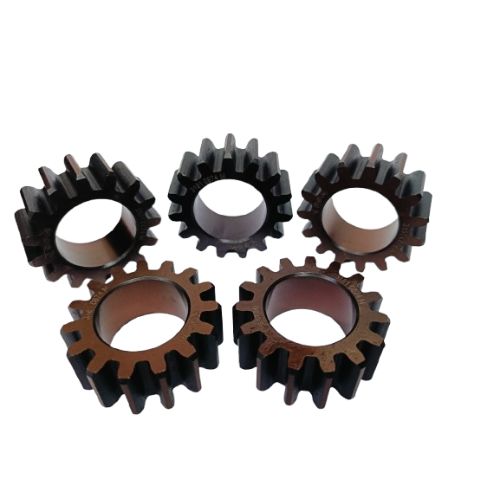

11 Planetary Gear

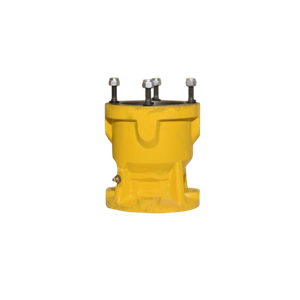

12 Planetary Housing

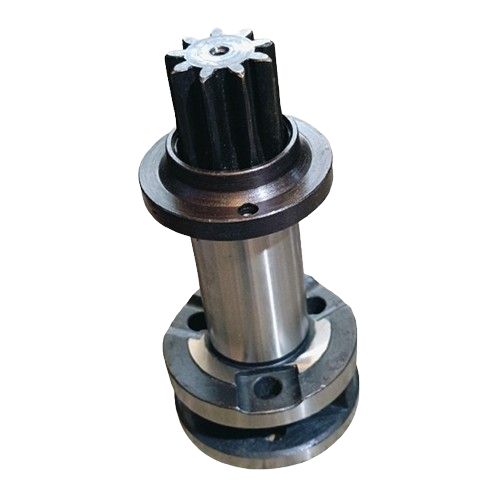

13 Planetary Shaft

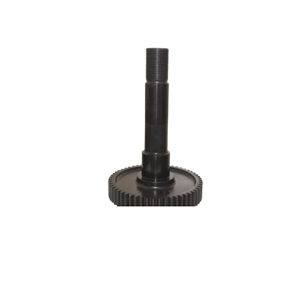

14 Spindle Shaft

LD-4 Component

Lubrication Panel

Machine Component

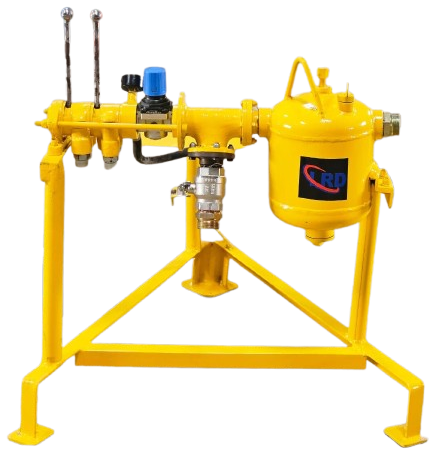

LD-4 Lubrication Panel

The LD-4 Lubrication Panel is specially designed to operate and manage the lubrication system of the LD-4 machine.

Its user-friendly control arrangement makes machine operation convenient and allows a single operator to efficiently manage the system during drilling operations.

Practical Control

Designed for convenient single-operator management.

3–7"

Hole Diameter

30m

Vertical

20m

Horizontal

700kg

Approx. Weight

Looking for the right quarry drilling solution?

Contact our team for LD-4 machine details, spare parts, pricing and quarry drilling requirements.

Send Enquiry Talk to Us
